01

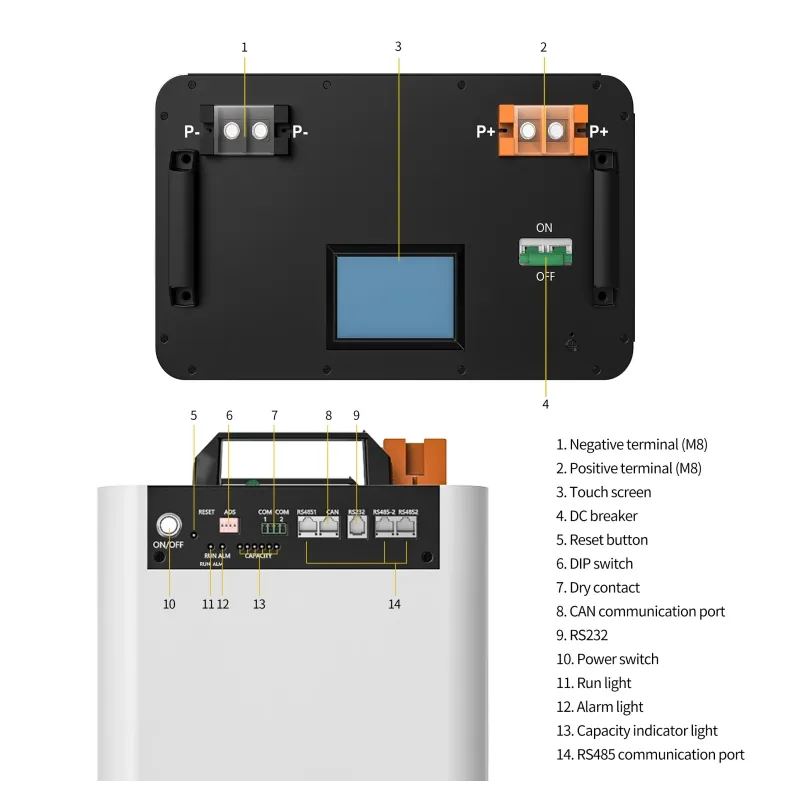

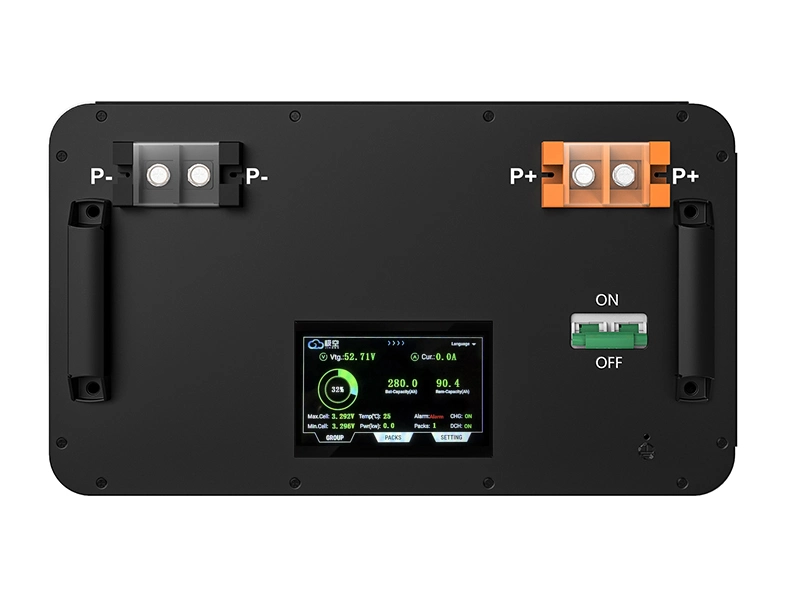

Control Panel
Power terminals, DC breaker, status indicators and communication ports.
USA stocks Apexium L3 51.2V 314Ah 16KWh moveable Battery pack with JK PB2A16S20P V19 BMS
Pre-Order
Reviews
USA stocks Apexium L3 51.2V 314Ah 16KWh moveable Battery pack with JK PB2A16S20P V19 BMS
- Stock: Pre-Order
- Brand: Apexium
- Model: APEX L3
- Weight: 125.00kg
- Dimensions: 69.00cm x 87.00cm x 30.00cm
$1,588.00

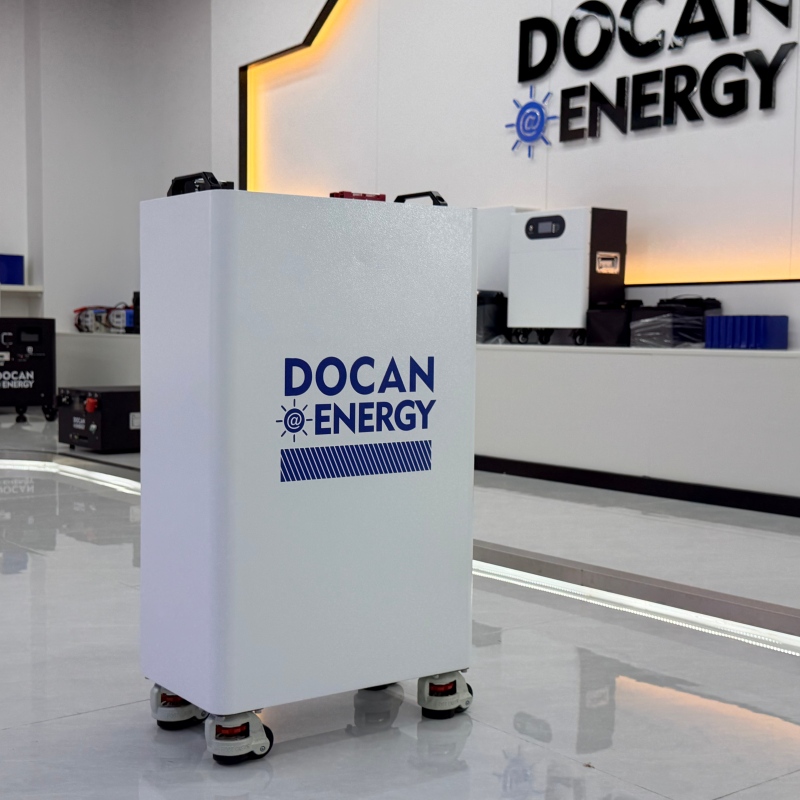

DOCAN ENERGY / L3 BATTERY SERIES
L3 16kWh
LiFePO4 Battery
Engineered for dependable residential energy storage. A 51.2V 314Ah battery with JK V19 smart BMS, intuitive touchscreen control and a movable metal cabinet.
ENERGY STORAGE16.08 kWh
51.2VNominal Voltage
314AhNominal Capacity
JK BMSPB2A16S20P-V19 200A
4.3″Touchscreen
PRODUCT HIGHLIGHTS
Powerful by design.
Practical in every detail.
Integrated battery management, clear status monitoring and accessible cabinet hardware in a compact indoor energy storage system.
▣
16.08kWh Energy
16 × 3.2V 314Ah LiFePO4 cells in a 16S1P configuration.
◈
JK V19 Smart BMS
JK-PB2A16S20P-V19 hardware with active balancing capability.
▤
Touchscreen Display
4.3-inch interface for viewing battery operating information.
◎
Movable Cabinet
Integrated handles and wheels for convenient positioning.
01 / CABINET DESIGN
Compact form.
Serious capacity.
The upright L3 enclosure combines a painted iron cabinet, integrated controls and mobile hardware.

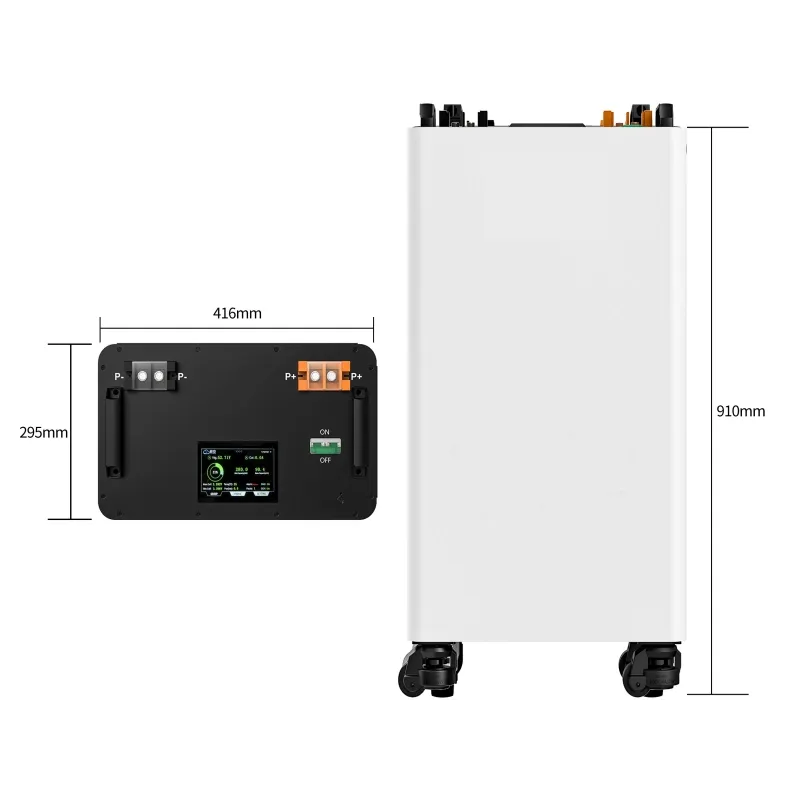

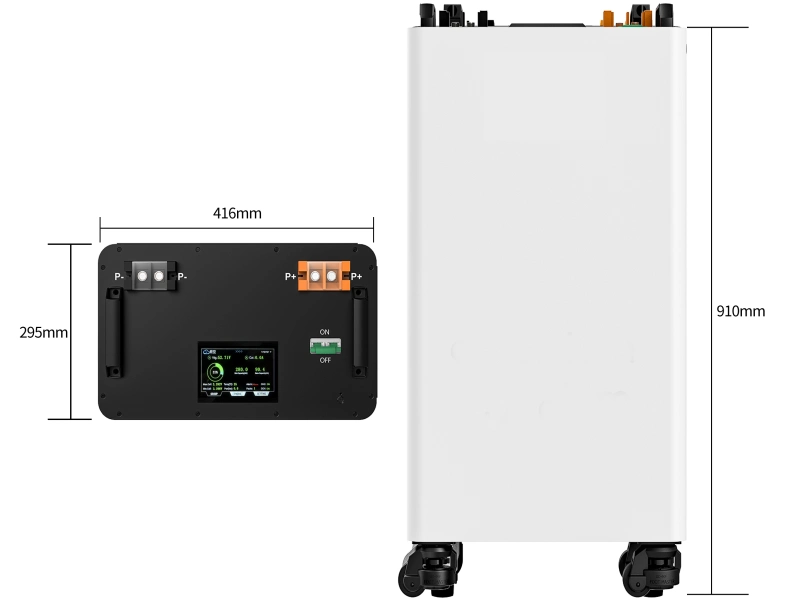

910mm Height416mm Width295mm Depth125kg
02 / COMPONENT SHOWCASE
Designed around the details.
Six focused image modules highlight the battery's controls, monitoring system, protection electronics and movable structure.
02

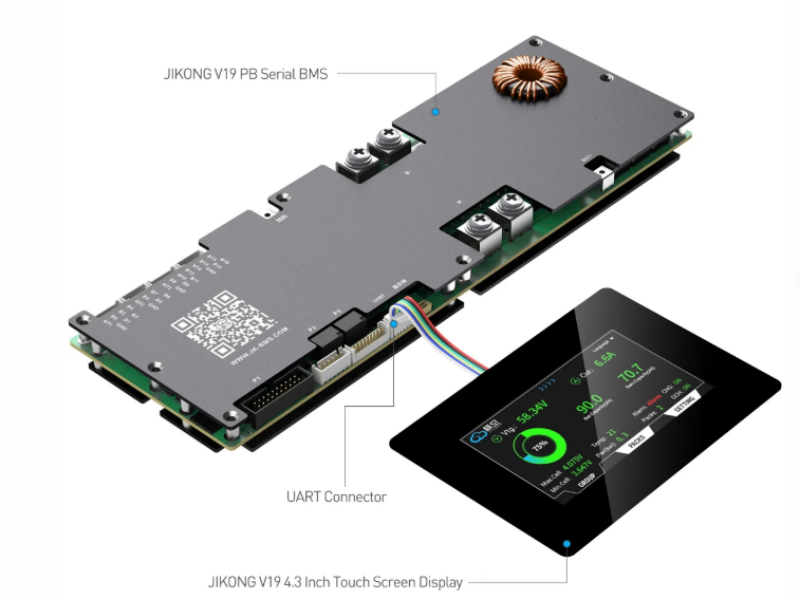

JK V19 Smart BMS
JK-PB2A16S20P-V19 BMS with configurable protection and active balancing hardware.
03

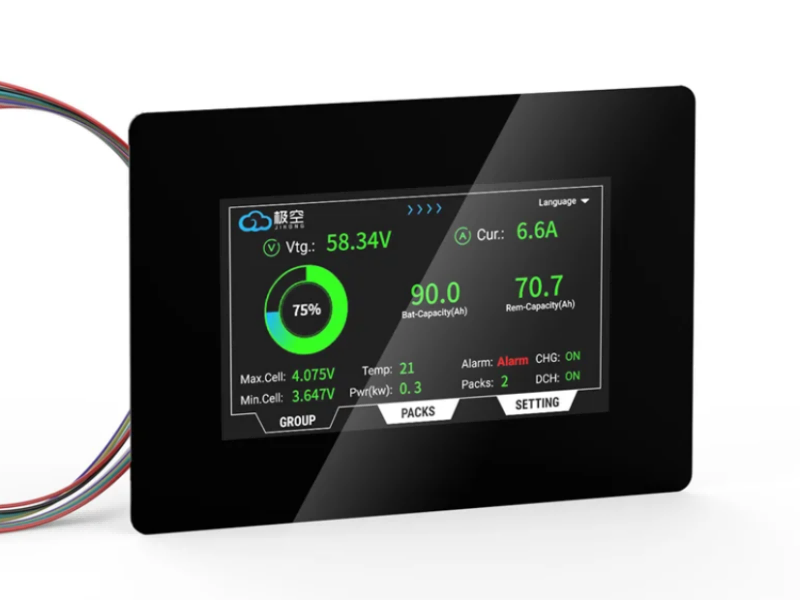

4.3-inch Touchscreen
Battery information and operating status accessible on the integrated display.
04

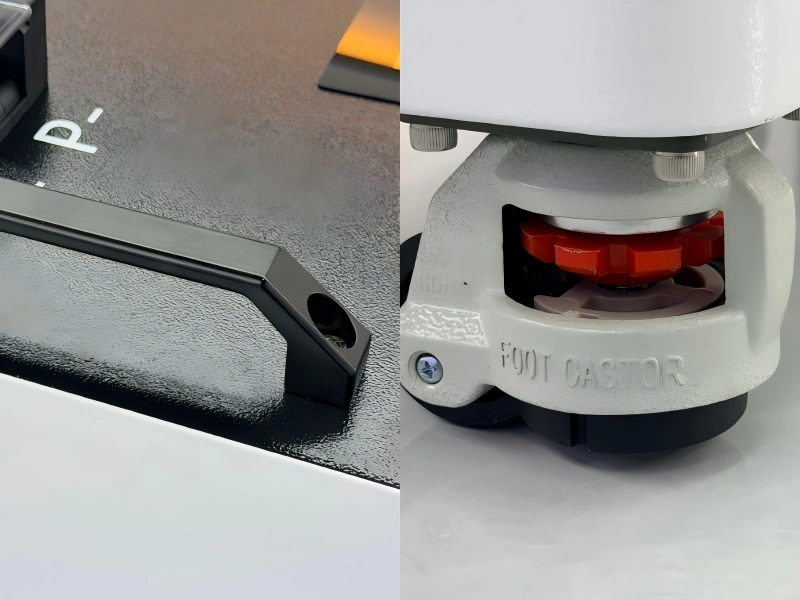

Handles & Wheels
Built-in handles and caster wheels simplify positioning during installation.
05

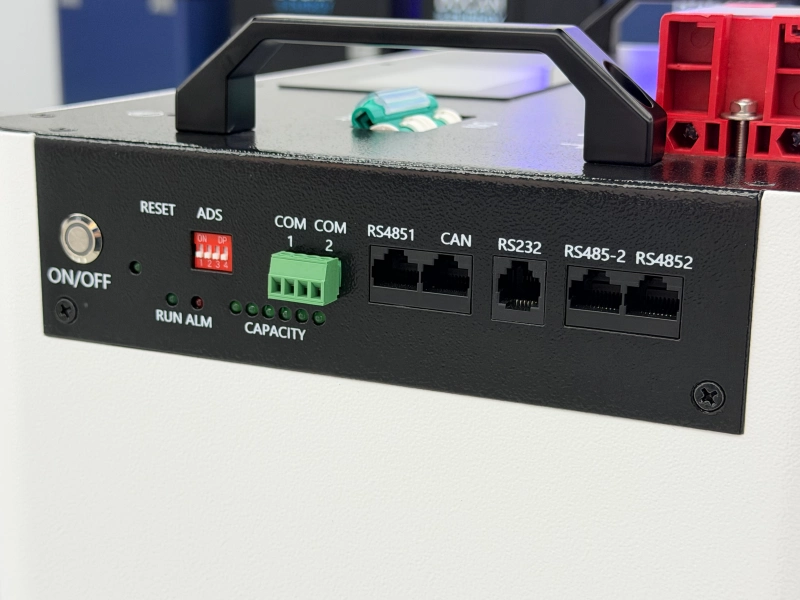

Communication Interfaces
RS485, CAN and Bluetooth communication options; inverter protocol compatibility requires confirmation.
06

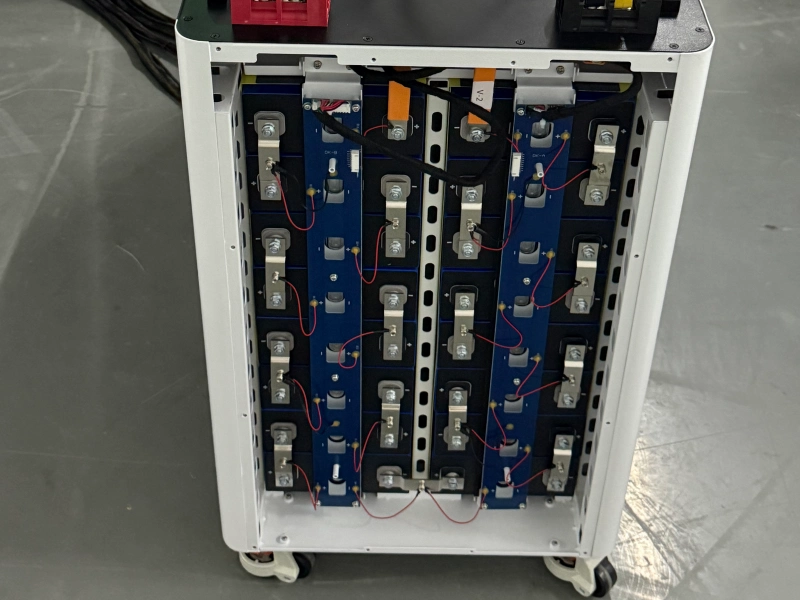

Internal Battery Layout
16S1P LiFePO4 architecture designed around sixteen 314Ah cells.
03 / TECHNICAL DATA
L3 16kWh Specifications
| Brand | DOCAN ENERGY |
|---|---|
| Model | L3 16kWh |
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 314Ah |
| Nominal Energy | 16.08kWh |
| Cell Configuration | 16S1P · 16 × 3.2V 314Ah |
| BMS | JK-PB2A16S20P-V19 |
| BMS Hardware Class | 200A; operating limits subject to final configuration |
| Active Balancing | 2A |
| Display | 4.3-inch Touchscreen |
| Communication | RS485 / CAN / Bluetooth; RS232 interface documented |
| DC Breaker | 200A |
| Dimensions (H × W × D) | 910 × 416 × 295 mm |
| Net Weight | 125 kg |
| Cabinet | Painted iron, 1.5mm nominal thickness |
| Ingress Protection | IP20 |
| Ambient Temperature | −30°C to +55°C |
| Connection | Support max 16 units connect in parallel; do not connect in series |
| Warranty | 10 years, subject to DOCAN ENERGY warranty terms |
Please read the product specification carefully before use.
04 / MANUFACTURING & FULFILLMENT
From production to delivery.

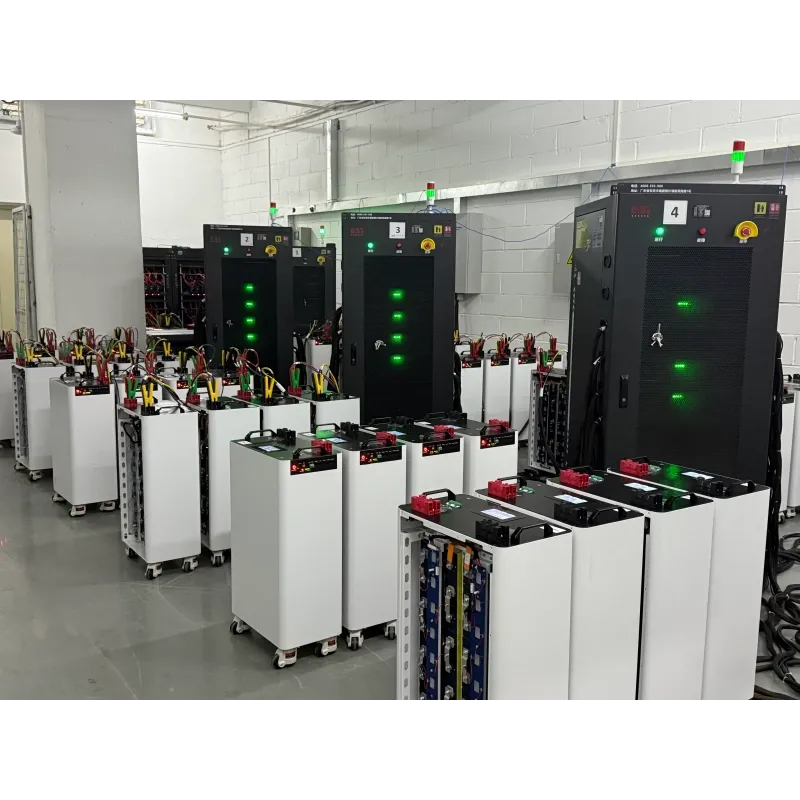

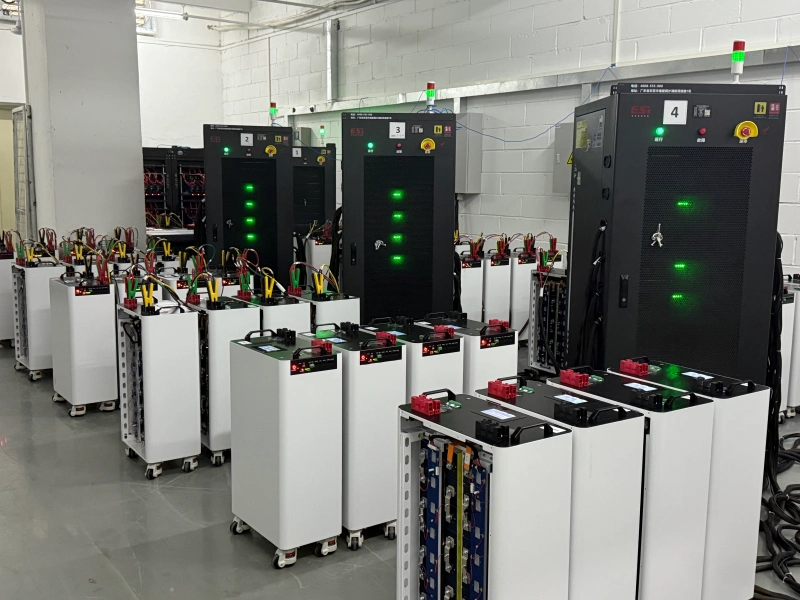

Production & Quality Inspection
Battery assembly, wiring, functional checks and pre-shipment inspection. Use actual factory photographs for this section.

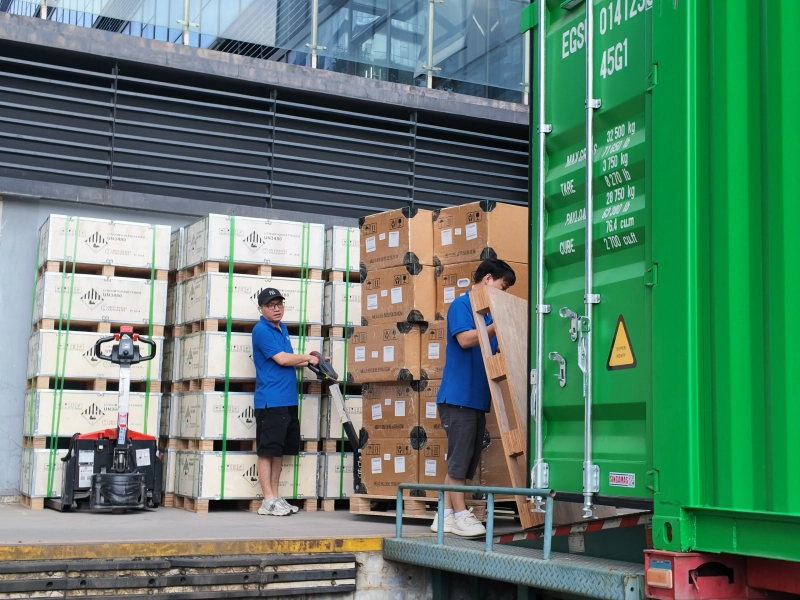

Packaging & Transportation
Protective packaging for international logistics. China-origin shipments are quoted individually based on order quantity and delivery address.
DOCAN ENERGY / SALES SUPPORT
Build your energy storage system.
Request pricing, compatibility guidance and a shipping quotation for the L3 16kWh battery.
