COMMERCIAL ESS
For commercial energy storage designs where high energy per cell and controlled module architecture are required.
(China stocks) Hithium 1175Ah 3.2V Lifepo4 battery 3.76kwh energy storage cell
Reviews
(China stocks) Hithium 1175Ah 3.2V Lifepo4 battery 3.76kwh energy storage cell
- Stock: In Stock
- Brand: Hithium
- Model: 1175Ah
- Weight: 22.50kg
- Dimensions: 58.00cm x 7.50cm x 22.00cm
$238.00
PRISMATIC LARGE-FORMAT LFP CELL
HITHIUM
1175AH

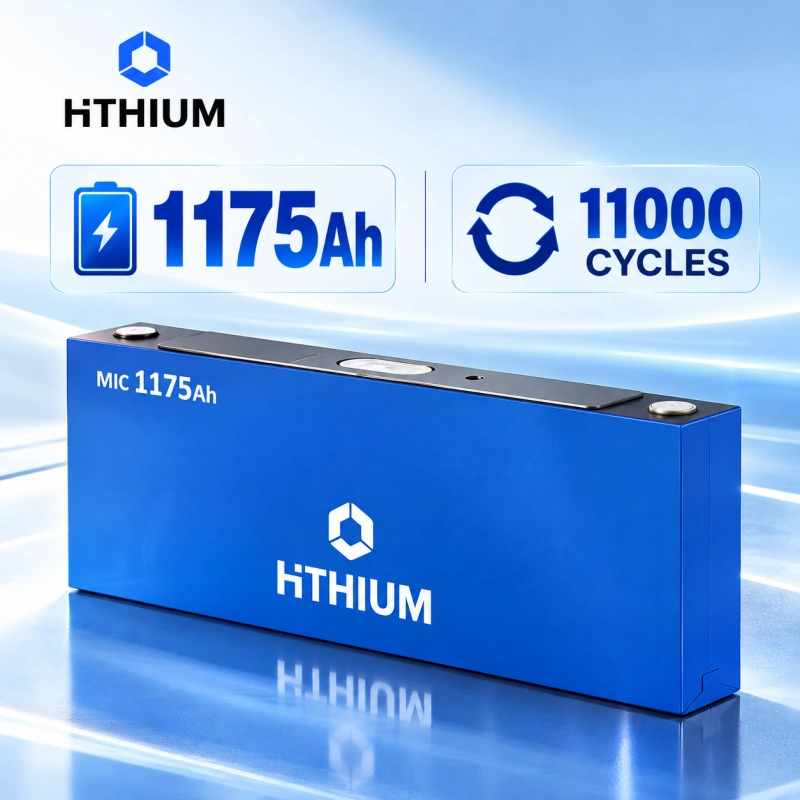

A 3.20V 1175Ah LiFePO4 battery cell with 3.76kWh nominal energy, designed as a cell-level building block for professional commercial and utility-scale energy storage systems.
OVERVIEW
CELL DATA, CLEARLY PRESENTED.
The MC1175P025A is a large-capacity LFP cell for systems that require reduced cell count, a controlled mechanical assembly design and long-life energy storage performance.
KEY FEATURES
- HIGH CAPACITY: 1175Ah nominal capacity at 3.20V.
- NOMINAL ENERGY: 3760Wh / 3.76kWh per cell.
- LONG LIFE: 11000 cycles to 70% SOH under the specified 0.25P test method.
- ENERGY DENSITY: ≥180Wh/kg.
- OPERATING RANGE: discharge from -30°C to 60°C; charge from 0°C to 60°C.
1175AHNOMINAL CAPACITY
3.76KWHNOMINAL ENERGY
11000CYCLES AT 70% SOH
20.4KGNOMINAL CELL WEIGHT
TECHNICAL SPECIFICATIONS
MANUFACTURER DATA
Published values below are taken from the supplied Hithium cell technical specification for the MC1175P025A cell.
PARAMETER
VALUE
CONDITION / NOTE
MANUFACTURER
HITHIUM
CELL TECHNICAL SPECIFICATION
MODEL
MC1175P025A
LARGE-FORMAT PRISMATIC CELL
CHEMISTRY
LFP / LiFePO4
—
NOMINAL CAPACITY
1175Ah
25±2°C, STANDARD CHARGE / DISCHARGE
NOMINAL VOLTAGE
3.20V
25±2°C
NOMINAL ENERGY
3760Wh / 3.76kWh
25±2°C
OPERATING VOLTAGE
2.5–3.65V / 2.0–3.65V
T>0°C / T≤0°C
IMPEDANCE (1KHZ)
0.23±0.05mΩ
27% SOC
ENERGY DENSITY
≥180Wh/kg
—
NOMINAL CONTINUOUS POWER
0.25P CHARGE / 0.25P DISCHARGE
25±2°C
OPERATING TEMPERATURE
0°C TO 60°C / -30°C TO 60°C
CHARGE / DISCHARGE
SELF-DISCHARGE
≤3.0% PER MONTH
FRESH CELL, 27% SOC, 25±2°C
CYCLE LIFE
11000 CYCLES TO 70% SOH
DEFINED 0.25P TEST METHOD

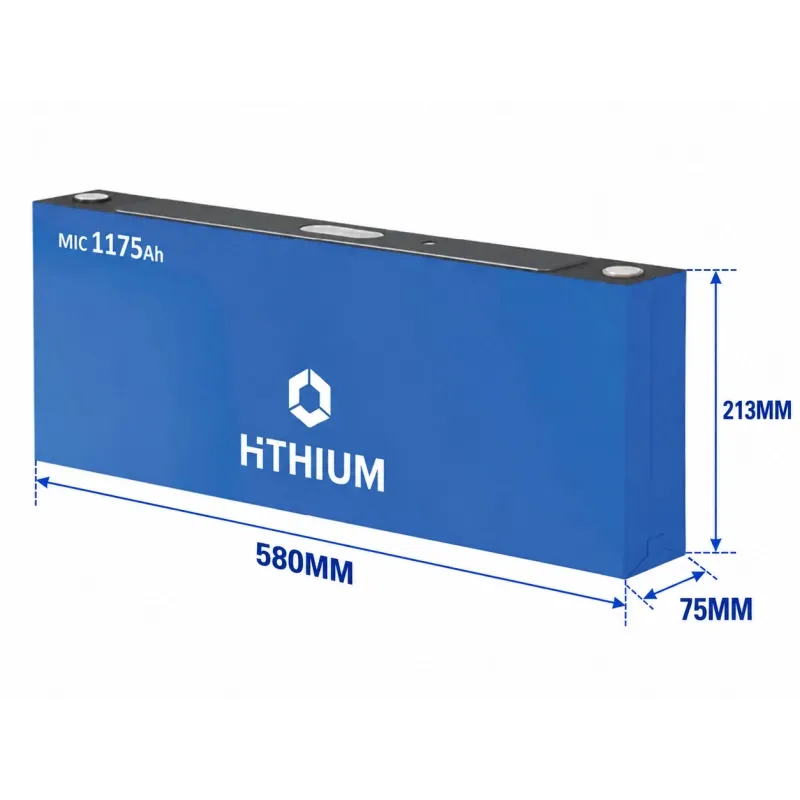

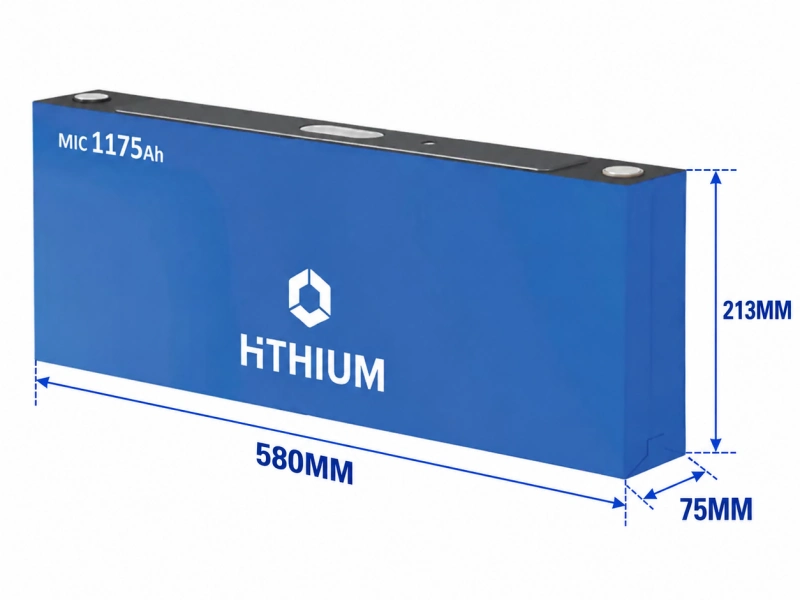

MECHANICAL DATA
DIMENSIONS & ASSEMBLY
Mechanical dimensions are measured under the specified preload condition. Verify the official drawing before completing module or pack design.
- WIDTH (C–D SECTION)580.22±0.50MM
- THICKNESS75.22±0.50MM
- HEIGHT WITH TERMINAL216.31±0.50MM
- HEIGHT WITHOUT TERMINAL213.77±0.50MM
- TERMINAL WELDING AREAΦ27.00±0.20MM
- RECOMMENDED ASSEMBLY FORCE3000±200N
CELL WEIGHT: 20.4±0.50KG, INCLUDING INSULATION FILM.
APPLICATIONS & SYSTEM DESIGN
FOR PROFESSIONAL ESS INTEGRATION
This is a cell-level component, suitable for qualified system integrators designing a complete, protected and mechanically controlled energy storage system.
UTILITY-SCALE BESS
For large-format stationary battery energy storage systems using professionally engineered racks, BMS and thermal management.
LONG-DURATION STORAGE
For applications prioritizing LFP chemistry, long cycle life and reduced cell count at the module and rack level.
INTEGRATION NOTICE: The cell does not include a BMS, enclosure, busbars, fire protection or thermal-management system. The final system must use suitable over-voltage, over-current, temperature and mechanical-compression controls designed by qualified professionals.
REQUEST HITHIUM 1175AH
CELL SUPPORT.
Contact DOCAN ENERGY for availability, quotation support and technical discussion for large-format LiFePO4 energy storage cells.
