(China stocks) 307V 314Ah 96kWh High Voltage Industrial Energy Storage Battery System
Reviews
- Stock: In Stock
- Brand: DOCAN ENERGY
- Model: HV307
- Weight: 790.00kg
HV307 307.2V
HIGH VOLTAGE BATTERY
96.46kWh modular LiFePO4 high-voltage energy storage system designed for commercial, industrial and high-capacity stationary energy storage applications.
96.46kWh Modular
High-Voltage Battery System

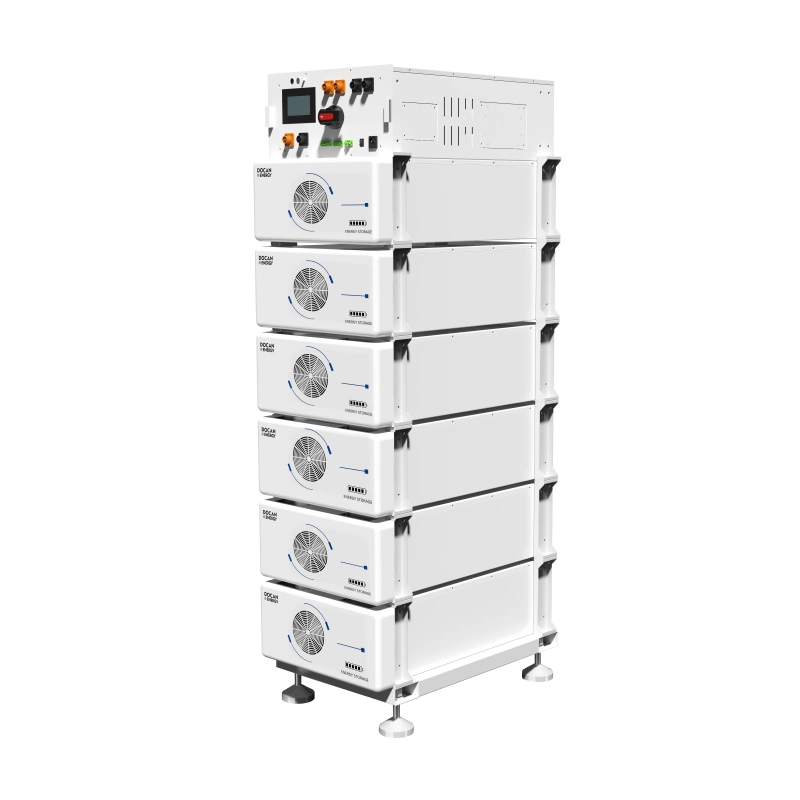

The DOCAN HV307 is a modular LiFePO4 energy storage system consisting of six 51.2V 314Ah battery modules combined with an integrated high-voltage control unit.
The complete battery cluster provides 307.2V nominal voltage, 314Ah nominal capacity and approximately 96.46kWh of stored energy.
Six modular 51.2V 314Ah battery units form the complete high-voltage battery cluster.
Large-capacity lithium iron phosphate battery architecture for stationary ESS.
Dedicated high-voltage control and power-distribution architecture.
Communication interface for battery, inverter and system integration.
Designed for Professional Energy Storage
The modular high-voltage architecture combines battery management, electrical protection, communication and modular battery storage in one integrated platform.
Stacked Battery Architecture
Individual battery modules simplify transportation, installation, servicing and system maintenance.
Integrated HV Management
Centralized high-voltage control manages the electrical connection between battery modules and the energy storage system.
CAN Communication
CAN communication supports system monitoring and compatible inverter communication.
Forced-Air Cooling
Integrated ventilation supports thermal management during battery operation.

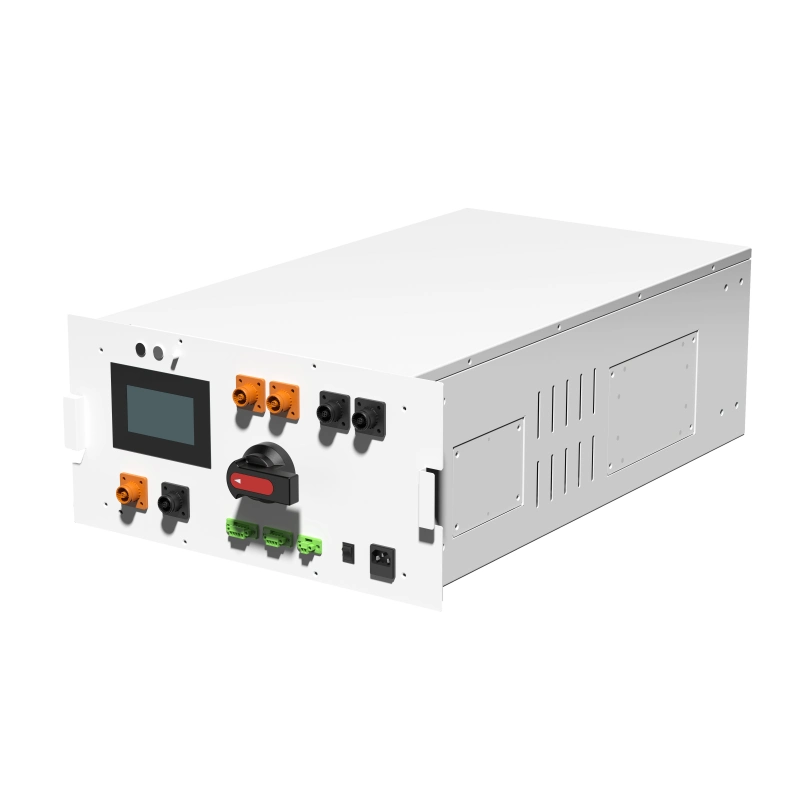

V300 PDU-200A
The high-voltage control unit provides centralized electrical connection, system monitoring, protection and communication between the battery cluster and the energy storage system.
The PDU integrates the main electrical protection and control components into a compact enclosure, reducing external wiring complexity.
200A High-Voltage Power Distribution
The V300 PDU-200A provides the central electrical interface for the high-voltage battery cluster, integrating system connection, protection, communication and control.
HV307 Technical Specifications
Core electrical, mechanical and operating parameters of the DOCAN HV307 307.2V 314Ah high-voltage LiFePO4 battery system.
51.2V 314Ah / 16.07kWh Per Module
Six modular 51.2V 314Ah LiFePO4 battery modules combine to form the complete 307.2V HV307 battery cluster.
51.2V
Nominal voltage of each individual battery module.
314Ah
Nominal capacity of each modular battery unit.
16.07kWh
Nominal stored energy per battery module.
125kg
Approximate weight of each battery module.

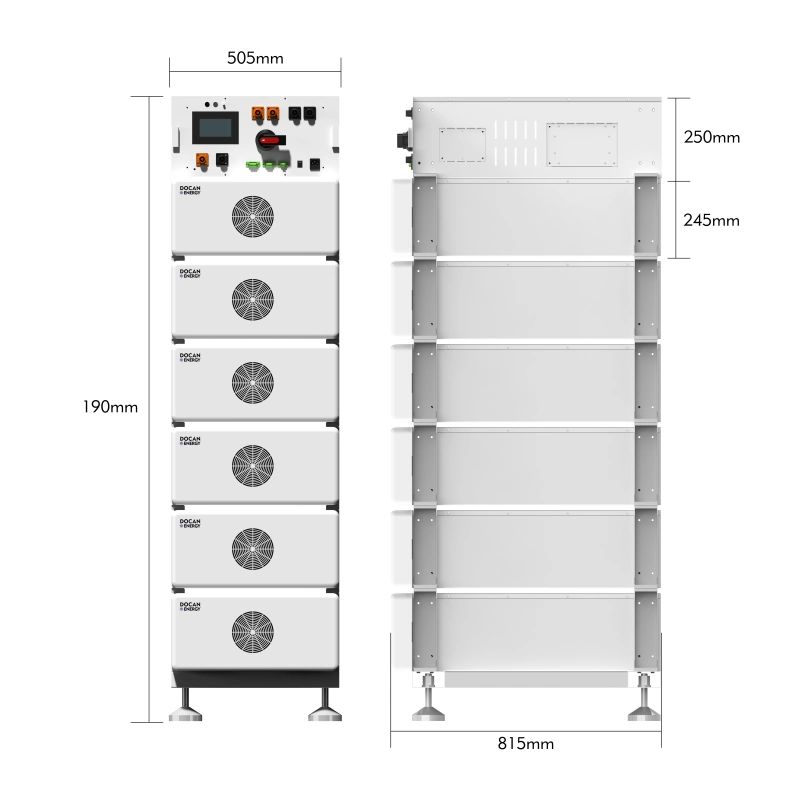

HV307 Dimensions
The dimensional drawing is displayed at its original aspect ratio so all measurement lines and structural details remain visible without cropping or distortion.
Mechanical Overview
Commercial & Industrial Energy Storage
The HV307 high-voltage battery platform is designed for commercial, industrial and other stationary energy storage systems requiring high capacity, high system voltage and modular integration.
Energy storage for offices, commercial properties and business energy-management systems.
High-capacity energy storage for factories, workshops and industrial electrical systems.
Store photovoltaic energy and improve renewable energy utilization for commercial applications.
Modular high-voltage battery platform for professional stationary energy storage projects.
HV307 High-Voltage Energy Storage System
Download the HV307 technical datasheet for detailed specifications, or contact DOCAN ENERGY for inverter compatibility, project configuration, quotation and shipping information.
