01
32-CELL 16S2P DESIGN
32 matched 3.2V 314AH LiFePO4 cells deliver 628AH capacity in a floor-standing cabinet format.

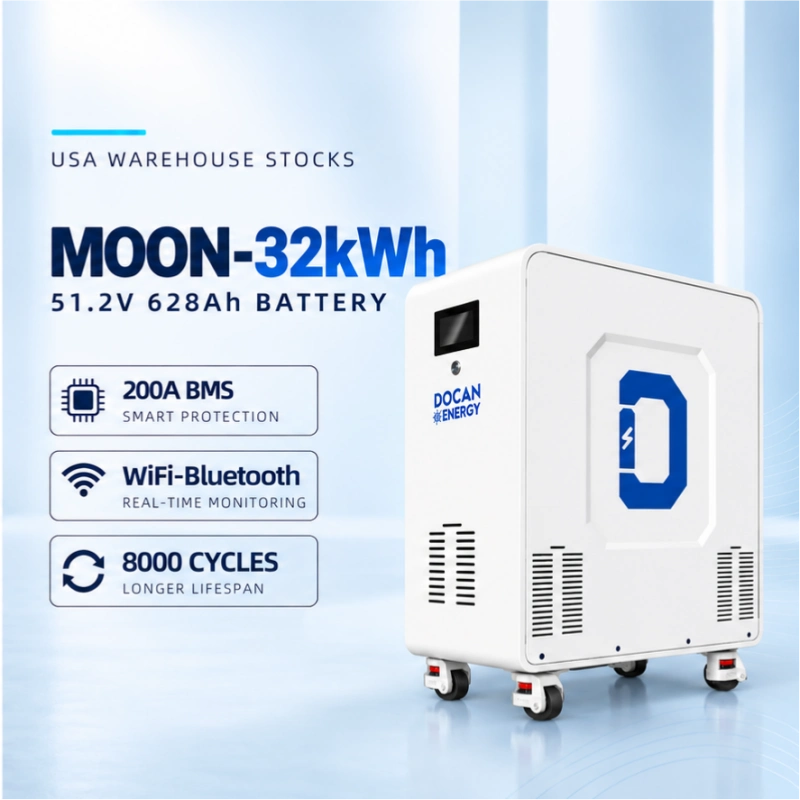

USA stocks Docan Energy 32kWh 51.2V 628Ah moveable Battery pack with 200A BMS and touch screen WIFI/Bluetooth
Reviews
USA stocks Docan Energy 32kWh 51.2V 628Ah moveable Battery pack with 200A BMS and touch screen WIFI/Bluetooth
- Stock: In Stock
- Brand: DOCAN ENERGY
- Model: MOON 32kWh
- Weight: 234.00kg
- Dimensions: 91.00cm x 42.00cm x 71.00cm
$2,959.00
EU WAREHOUSE STOCK
MOON 32KWH
51.2V 628AH LIFEPO4 ENERGY STORAGE BATTERY
A high-capacity all-in-one LiFePO4 battery system for residential and light commercial energy storage. The 16S2P design combines 32 cells, intelligent protection, 2A active balancing and flexible parallel expansion.
51.2V 628AH32.15KWH ENERGY16S2P200A CONTINUOUS2A ACTIVE BALANCE8000+ CYCLESRS485 / CANWIFI / BLUETOOTH APP
32.15KWHHIGH CAPACITY STORAGE
200ACONTINUOUS DISCHARGE
16 PACKSIN PARALLEL
8000+SPECIFIED CYCLE LIFE
PRODUCT ADVANTAGES
BUILT FOR HIGHER DAILY ENERGY DEMAND
MOON 32KWH is engineered for dependable energy storage where capacity, current capability and system visibility all matter.
02
2A ACTIVE BALANCING
High-current active balancing supports voltage consistency across the battery cell group.
03
200A OUTPUT
Designed for up to 200A continuous discharge to support compatible inverter loads.
04
FLEXIBLE EXPANSION
Supports parallel connection of up to 16 battery packs for scalable storage capacity.
TECHNICAL DATA
TECHNICAL SPECIFICATIONS
Electrical, mechanical and environmental parameters based on the MOON 32KWH product specification.
| SPECIFICATION | VALUE |
|---|---|
| BATTERY CHEMISTRY | LiFePO4 |
| CELL CONFIGURATION | 32 × 3.2V 314AH |
| CONFIGURATION | 16S2P |
| NOMINAL VOLTAGE | 51.2V |
| NOMINAL CAPACITY | 628AH |
| NOMINAL ENERGY | 32,153WH |
| CHARGE CUT-OFF VOLTAGE | 58.4V |
| DISCHARGE CUT-OFF VOLTAGE | 40V |
| MAX. CONTINUOUS DISCHARGE | 200A |
| STANDARD CHARGING CURRENT | WITHIN 0.5C |
| CHARGE TEMPERATURE | 0°C TO 45°C |
| DISCHARGE TEMPERATURE | -20°C TO 60°C |
| DIMENSIONS | 912 × 420 × 715 MM |
| NET WEIGHT | 234 KG |
| COMMUNICATION | RS232 / RS485 / CAN |
| CONNECTIVITY | WIFI / BLUETOOTH APP |
| BALANCING CURRENT | 2A ACTIVE BALANCE |
| CYCLE LIFE | 8000+ CYCLES, ≥70% |
| OVER-CURRENT PROTECTION | 300A |
CABINET DESIGN
HIGH CAPACITY IN A MOBILE CABINET
The integrated cabinet design keeps a 628AH battery bank organized and easier to position during installation and maintenance.
- 912 × 420 × 715 MM cabinet footprint
- Moveable structure with wheels for practical placement
- Front display and clearly arranged connection area
- Suitable for residential and light commercial storage projects
SYSTEM DETAILS
DESIGNED FOR SIMPLE SETUP AND DAILY CONTROL
Dedicated visual sections make the connection points, on-device display, WiFi and Bluetooth APP monitoring, and parallel capability easy for customers to understand.
CONNECTION PANEL
CLEAR FRONT ACCESS FOR ESS INTEGRATION
Clearly arranged power and communication connection area with RS485, RS232 and CAN interfaces for professional battery and inverter integration.
DISPLAY SCREEN
KEY BATTERY STATUS AT A GLANCE
Check voltage, state of charge, capacity percentage, alarms and operating status locally during setup and routine checks.
WIFI / BLUETOOTH APP
CHECK SYSTEM STATUS FROM YOUR PHONE
Use the supported WiFi and Bluetooth APP monitoring connection on compatible mobile devices to view key battery status information.
PARALLEL EXPANSION
GROW FROM ONE SYSTEM TO SIXTEEN
Supports up to 16 packs in parallel through the battery communication architecture. Each pack requires a unique DIP-switch address.
SMART BATTERY MANAGEMENT
CONTROL, PROTECTION AND VISIBILITY
The integrated BMS monitors key operating conditions and provides interface options for battery, inverter and monitoring-system communication.
2A ACTIVE BALANCESupports improved cell consistency across the battery pack.
RS485 / CANCommunication options for compatible inverter and system connection.
WIFI / BLUETOOTH APPConvenient battery-status monitoring through supported WiFi and mobile app connections.
16-PACK PARALLELScalable configuration for larger energy storage capacity.
INVERTER COMMUNICATION
READY FOR COMMON ESS INVERTER CONNECTION
RS485 and CAN communication interfaces are designed to support integration with compatible inverter systems. Confirm the correct communication protocol and cable configuration with DOCAN before installation.
GROWATTSMAMEGAREVOSOROTECNEPPYLONTECHVICTRON ENERGYAFOREHYPDNTECHSCHNEIDER ELECTRICGOODWELUXPOWERSRNEEPEVERDEYESOL-ARKMUSTSOLISSUNGROWSTUDERINVTTBB POWERRENACVOLTRONIC POWERSOFARLIVOLTEKEASUN POWERGIVENERGYAISWEIHOYMILES
BRAND LABELS ARE PROVIDED AS A COMPATIBILITY REFERENCE. FINAL COMMUNICATION SUPPORT DEPENDS ON INVERTER MODEL, FIRMWARE, PROTOCOL AND SYSTEM CONFIGURATION.
APPLICATIONS
ONE BATTERY PLATFORM, MORE ENERGY OPTIONS
RESIDENTIAL SOLAR
Store more solar energy for evening use, backup preparation and household load support.
OFF-GRID SYSTEMS
High capacity and flexible expansion for remote power systems and independent living.
LIGHT COMMERCIAL
Suitable for projects that require higher energy capacity with system monitoring interfaces.
PACKING AND DELIVERY
READY FOR TRANSPORT
Use protective packaging and follow the product manual during handling, installation and storage.
SAFETY NOTICE: Use a suitable charger and follow the product manual. Do not short circuit, disassemble, expose to fire or store the battery in wet or high-temperature environments. Installation should be performed by qualified personnel.
DOCAN ENERGY STORAGE
PLAN YOUR 32KWH STORAGE SYSTEM
Contact the DOCAN team for EU warehouse availability, compatible inverter communication and project-level configuration support.
