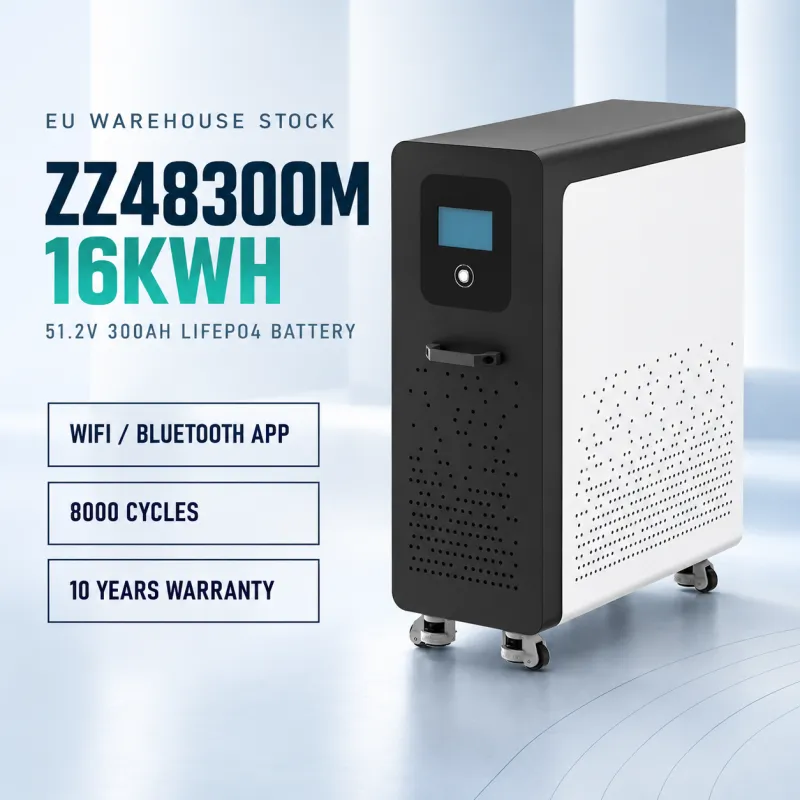

EU 51.2v 300ah 16kwh battery pack with 200a bms moveable
Reviews
- Stock: In Stock
- Brand: DOCAN ENERGY
- Model: DC48300M
- Weight: 125.00kg
- Dimensions: 69.00cm x 87.00cm x 30.00cm
This offer ends in:
ZZ48300M-16kWh
A high-capacity LiFePO4 energy storage battery designed for residential and commercial energy storage applications. Its movable cabinet design, touchscreen display and smart BMS support reliable operation, monitoring and flexible installation.
Smart energy storage in a compact design
Built around 16 matched 300Ah LiFePO4 cells with intelligent battery management and flexible communication options.
16S1P battery configuration with matched lithium iron phosphate cells.
Integrated voltage, current, short-circuit and temperature monitoring and protection.
View key battery status on the touchscreen and monitor data through the Bluetooth APP.
Communication support for PC monitoring and compatible inverter systems.
RS485 parallel communication supports up to 16 battery strings.
Long-cycle LiFePO4 battery chemistry designed for long-term energy storage.
Wheeled cabinet enclosure supports convenient placement and installation flexibility.
Supports up to 200A maximum continuous discharge current.
Technical specifications
Electrical, mechanical and environmental parameters based on the ZZ48300M battery specification.
868 × 687 × 300 mm
A movable 51.2V 300Ah battery cabinet engineered for high-capacity energy storage, with a compact footprint and integrated wheeled base.
Integrated controls and easy monitoring
The ZZ48300M control panel provides convenient access to battery status, system controls and communication connections for installation and daily operation.
Intelligent battery protection
The integrated BMS continuously monitors battery operating conditions and provides multiple layers of protection and system management.
Bluetooth APP and remote communication
View battery information through the Bluetooth APP and communication interfaces. The BMS provides data including voltage, current, temperature, SOC, SOH and operating status.
Designed for popular inverter systems
RS485 and CAN communication support enables integration with a wide range of commonly used energy storage inverter platforms. Cable pin definitions may vary between inverter models.
Clear battery status at a glance
The integrated touchscreen displays key battery information including voltage, SOC, temperature, operating current, charge-discharge cycles and battery cell status for convenient on-site monitoring.
Up to 16 battery packs
The BMS RS485 parallel communication interface supports a maximum of 16 battery strings simultaneously. Individual pack addresses are configured using DIP switches.
Long-term after-sales support
DOCAN ENERGY provides long-term warranty and after-sales support for our energy storage battery systems. For warranty terms, installation requirements and service conditions, please refer to our official warranty policy.
Ready for safe transportation
The battery and supplied accessories are prepared for transport with protective packaging.
From cell matching to final testing
Battery production includes cell matching, assembly, BMS integration, electrical connection, testing and final packaging.
Need ZZ48300M-16kWh batteries?
Contact DOCAN ENERGY for stock availability, wholesale pricing, inverter compatibility and delivery information.
